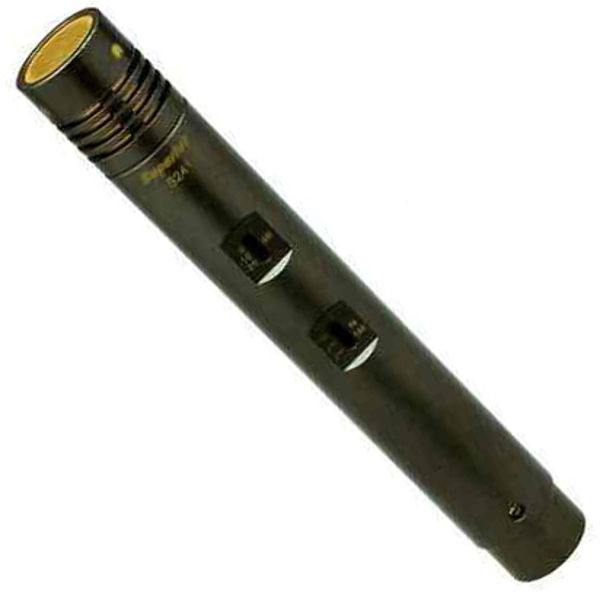

Mikrofon Superlux S-241/U3 Kondensator

Users guide
1/2'' True Condenser
The S241 is greatly appreciated by leading sound engineers because it is based on
professional craftsmanship and top quality standards. The S241 is a 1/2 goldevaporated
diaphragm microphone with an inter-changeable capsule and low noise microphone
pre-amplifier circuits. Its modular capsule design allows the user to change from
cardioid to omni polar pattern as needed. The S241 is an ideal candidate for
capturing the transient sounds from acoustic guitars, snare drums, hi-hats and
overheads. All these features make the S241 a great  tool for rental companies
as standard equipment.

Features:
    1/2'' 3µm thin film diaphragm
    Flat and wide response
    Modular capsule design
    -10 and -20dB PAD settings
    2nd order 75Hz and 150Hz switchable low cut filters.
    Laser engraved serial numbering

Application:
    Pro recording studio
    Live recording
    Vocals
    Strings
    Acoustic guitar
    Piano
    Brass
    Woodwinds
    Percussions

Type: True condenser, Ø1/2'' (Ø12.7 mm)
Polar Pattern: Cardioid, omni (option)
Low Frequency Filter: 75 Hz, 150 Hz
Pad: -10, -20 dB
Sensitivity: -35 dBV/Pa (17.8 mV)
Output Impedance: 200 O
Min. Load Impedance: 1,000 O
S/N Ratio: 78 dB
Equivalent Output Noise: 16 dB
Max. SPL: 143 dB SPL
Dynamic Range: 127 dB
Power Requirements: 48V DC, 3 mA
Finish: Titanium grey
Connector: XLR3M
Dimensions: Ø22 × 155 mm(Ø0.87'' × 6.1'')
Net Weight: 220 g (7.8 oz)
Accessories Furnished: HM40 shock mount;YA2 threaded adapter;S09F windscreen;HM43 metal
mesh pop screen
Optional Accessories: PS2A phantom power supply;HM26B shock mount;Omni capsule
Packaging: A3 protective carrying case Colorful outer packaging
